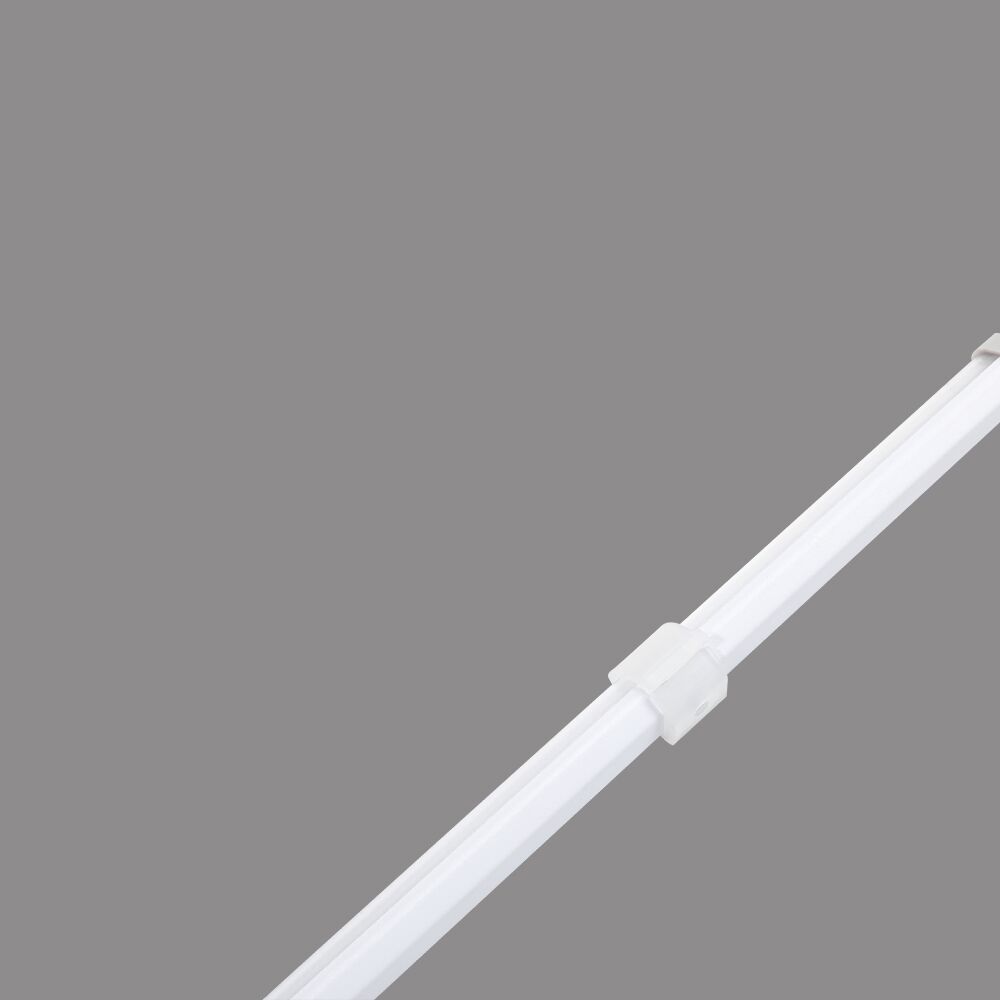

Horizontal Lighting Shelf light LBS-H Series

● Cost-effective and safe use, with extra-low voltage;
● Suitable for low-temperature refrigerated cabinets -30 to +35℃ (IP 65);
● Installation: via magnet or screw clip;
● Brilliant light with CRI 90;
● Excellent product illumination with innovative optics;
● Heat sink profile made of anodised, extruded aluminium;

Additional information




2.1 W – 8.4 W

Operating voltage

24 V DC

Luminaire type

Cooling unit lighting

Light efficientcy

Up to 120 lm/W

Colour Consisency



L80 B10 50,000 h @ 10℃

Operating temperature

-30℃ to + 35℃


PC / Aluminium


5 Years





Related Parameter Files

Related Parameter Files

Parameter information related to the current product

Product Details

Product nameLength (mm)        Lumen  ( lm)         milk-white coverPower(W)Colour renderig IndexColour temperature (K)
Horizontal LBS-H L3002961902.1903000K
Horizontal LBS-H L3002962022.1904000K
Horizontal LBS-H L3002962102.1906000K
Horizontal LBS-H L3002961582.180Fresh meat
Horizontal LBS-H L9009006956.3903000K
Horizontal LBS-H L9009007256.3904000K
Horizontal LBS-H L9009007456.3906000K
Horizontal LBS-H L9009005806.380Fresh meat
Horizontal LBS-H L120012009328.4903000K
Horizontal LBS-H L120012009858.4904000K
Horizontal LBS-H L1200120010108.4906000K
Horizontal LBS-H L120012007858.480Fresh meat

Why Choose Us

For more than 10 years, Laidishine has been providing a wide range of professional lighting services and become an innovator LED cool light field to the global market.

Customers also want to enjoy their shopping time. During this process, products must be seen clearly in the correct light. A good lighting solution attracts customers’ attention and makes the products colorful and attractive.

To satisfy retailers, Laidishine researches and designs LED lights with unique beams. This optical lens technique will let your products give a breathtaking performance. Meanwhile, the right light solution will help to leave a strong brand image in the mind of customers.

It is well-known that good lighting solutions in supermarkets can enhance customers’ shopping experience. Various approaches of colour therapy show how much our awareness is affected by colour. Laidishine LED products Increased product visibility, merchandizes looks more appealing and the packaging stands out.

Conventional fluorescent lighting will generate a lot of heat, which will add extra work to the cooling cistern, in turn, low temperatures reduce the effectiveness of fluorescent lighting. Since refrigeration equipment typically accounts for about half of supermarket’s total electricity consumption, 25% of which is consumed by cabinet lighting. LaidishineLED, with its cool running and high energy sinciency, conquers these weaknesses.
