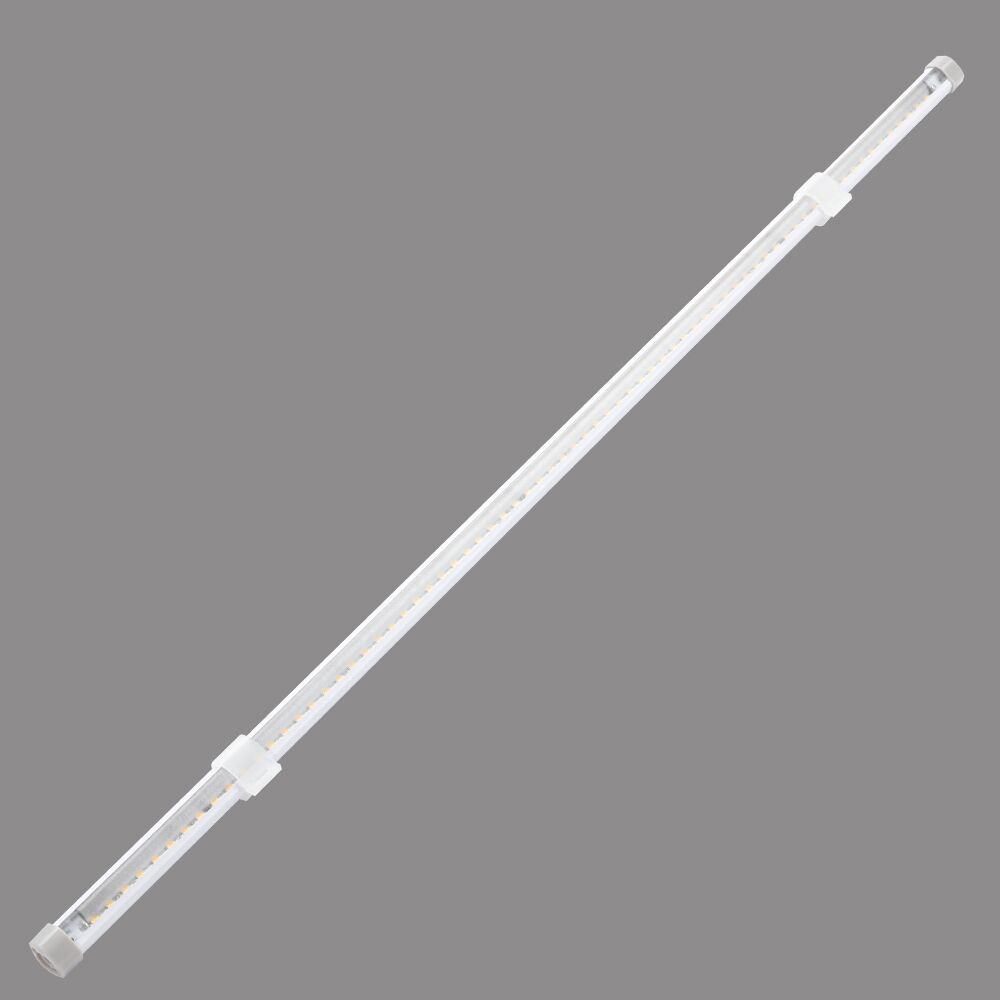

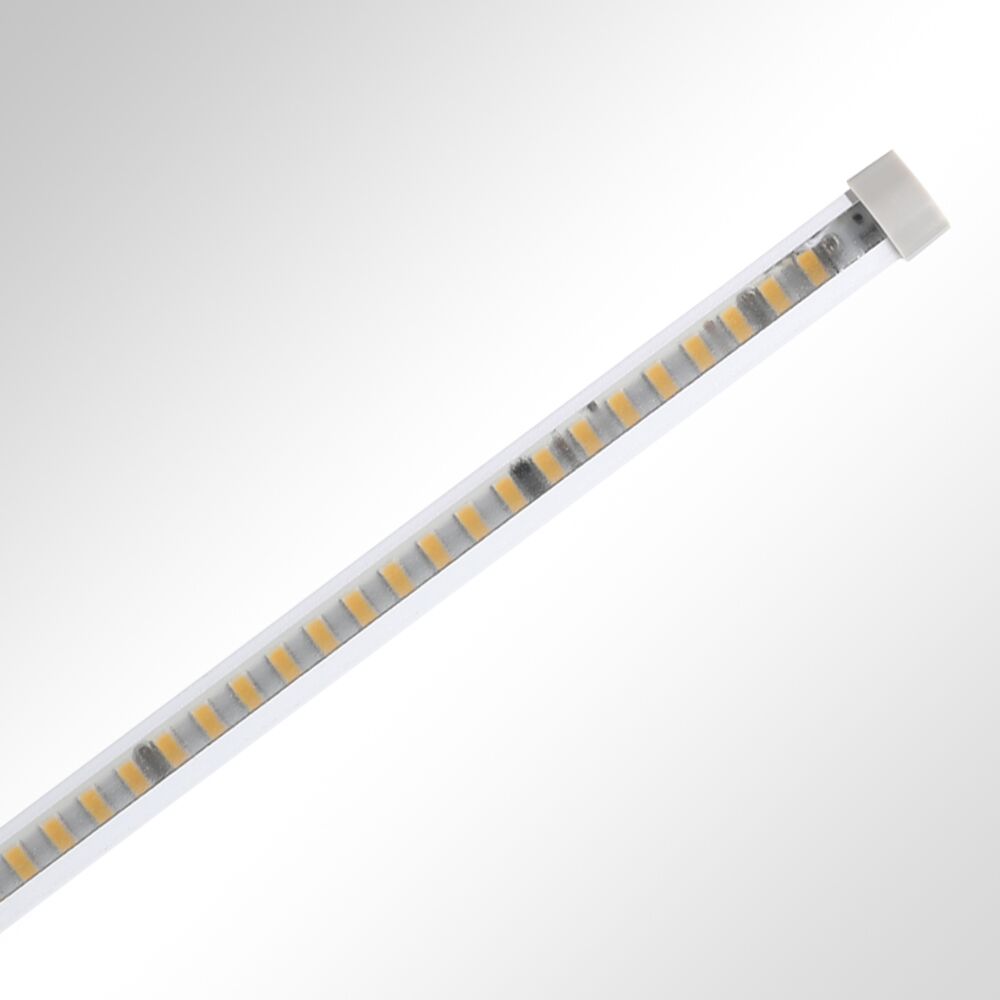

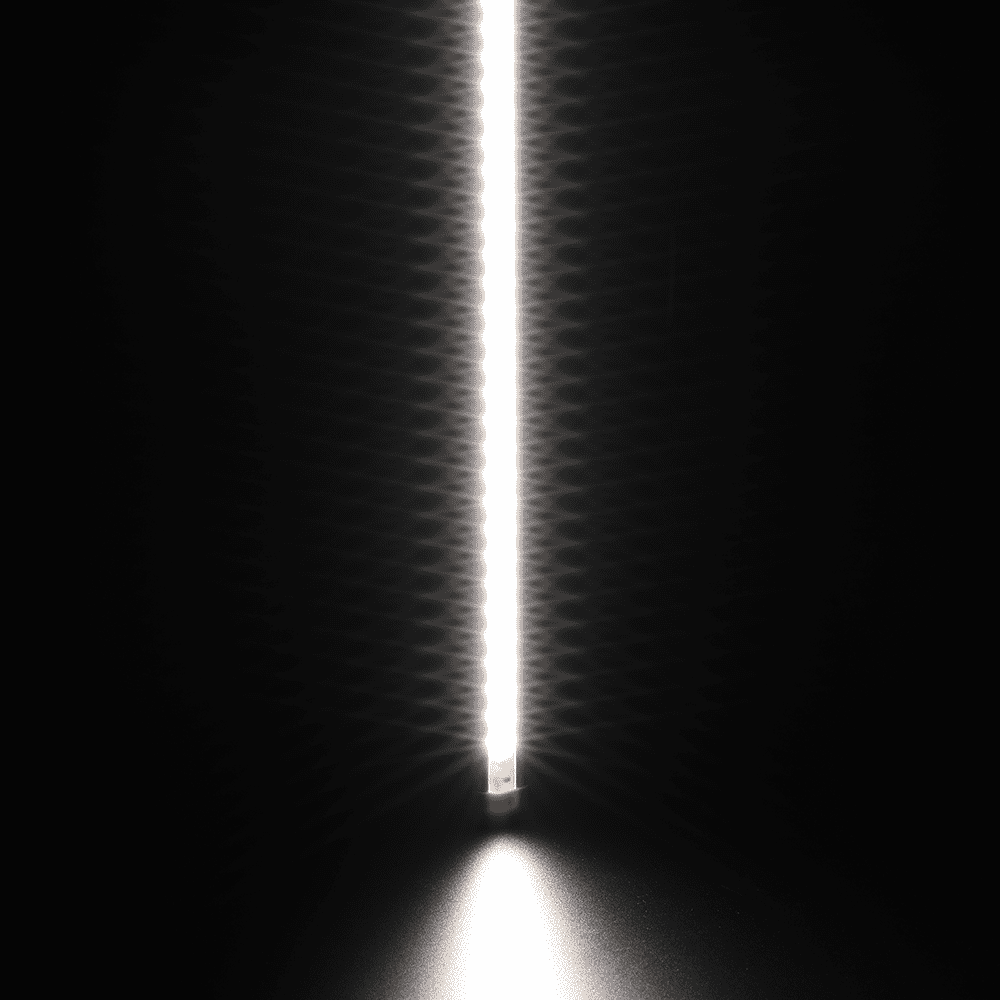

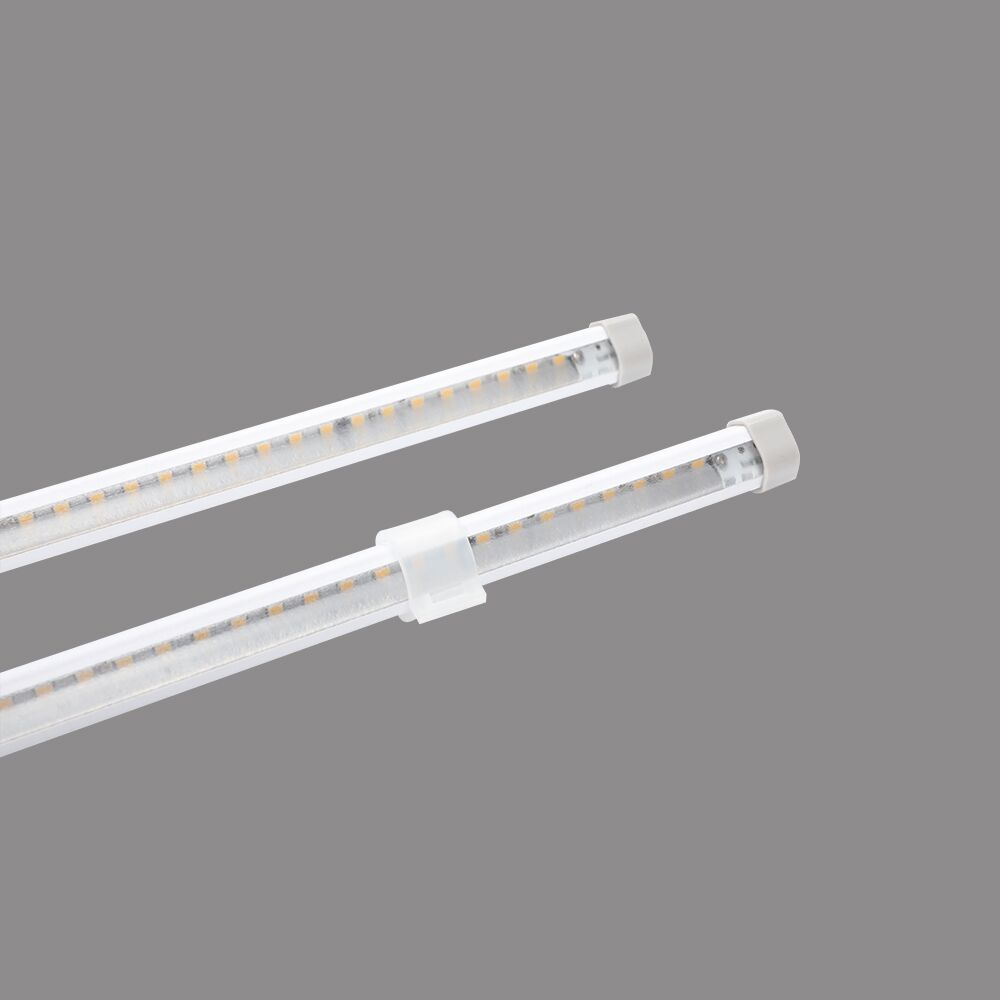

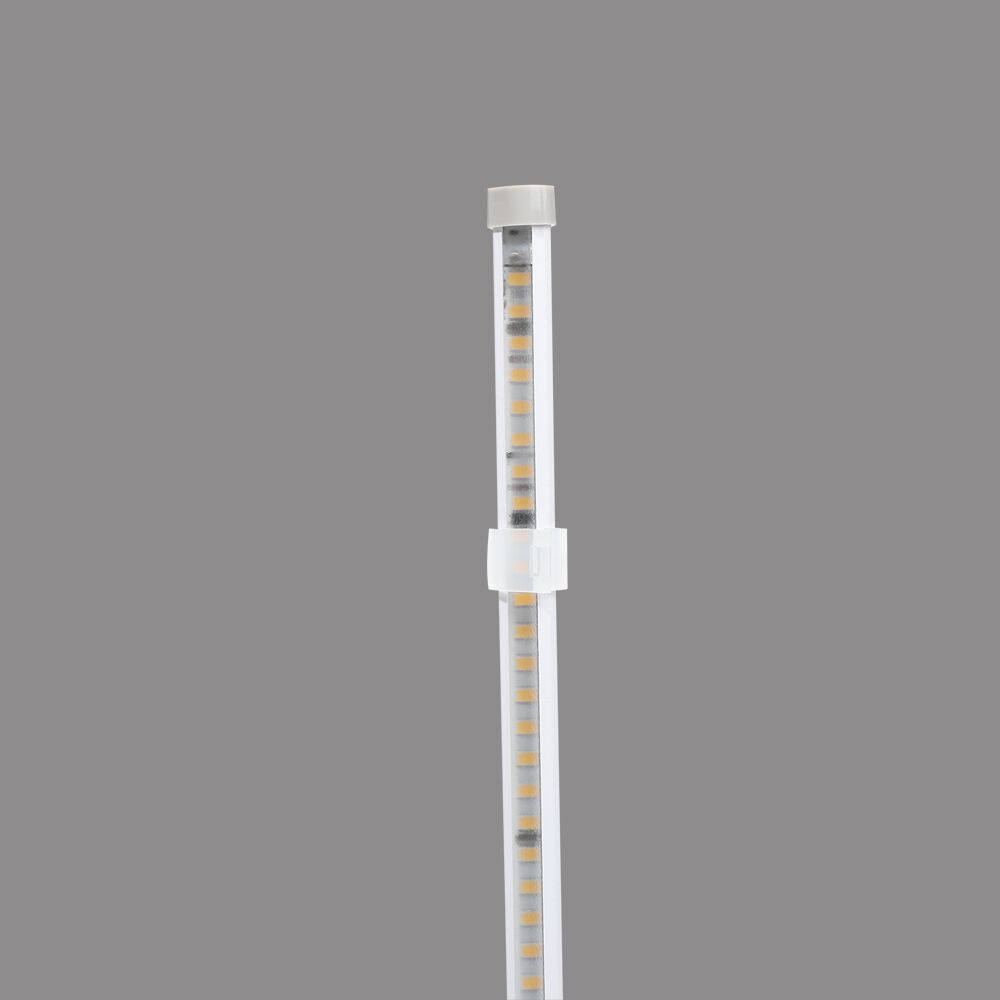

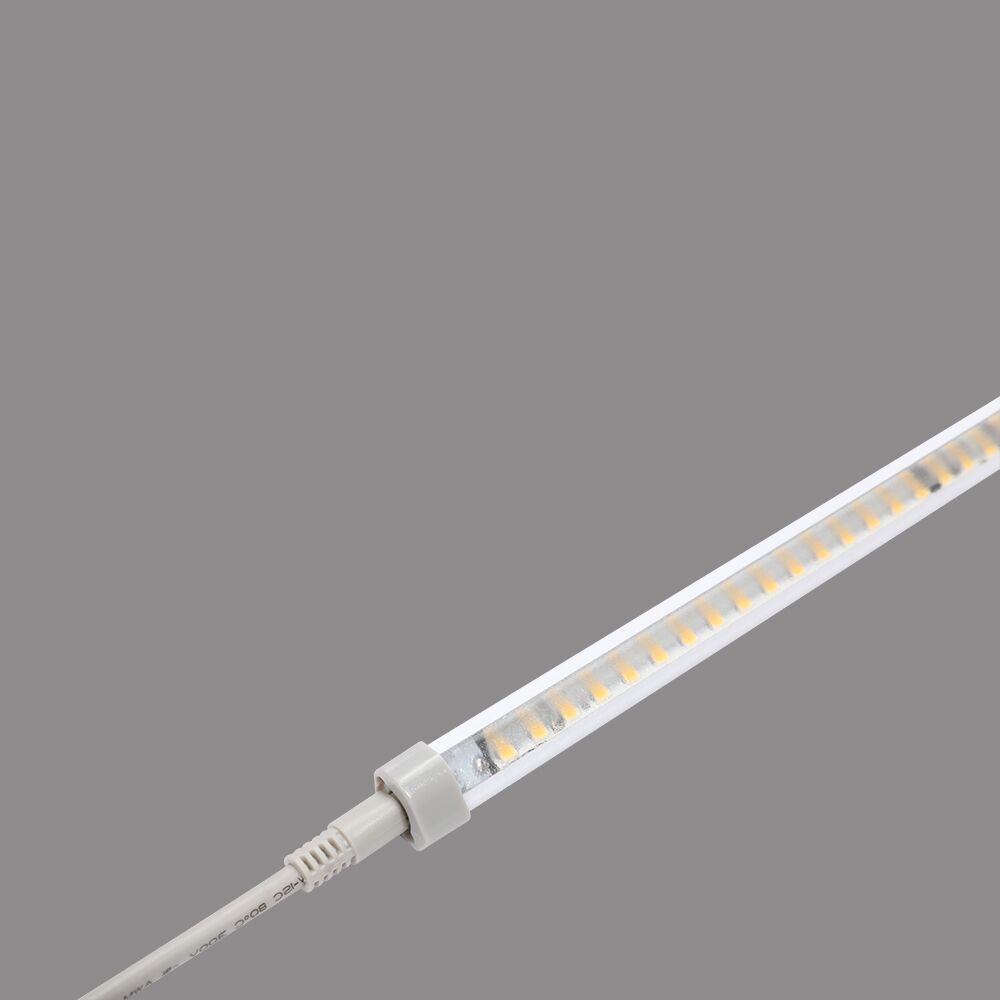

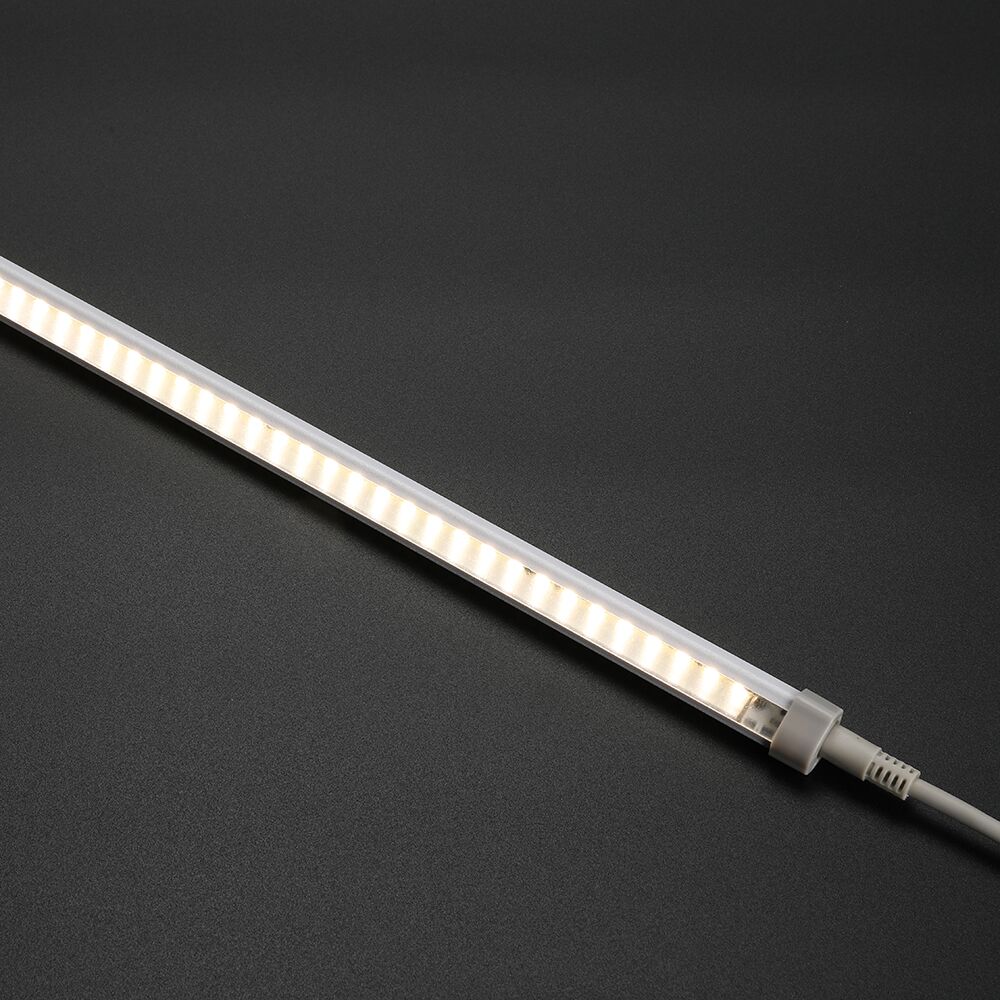

Vertical Door Lighting Vertical Freezer Door Light LBS-VR

● Cost-effective and safe-use,with extra-low voltage;
● Suitable for low temperature refrigerated cabinets -30 to +35℃(IP 65);
● Installation: via magnet or screw clip;
● Brilliant light with CRI 90;
● Excellent product illumination with innovative optics;
● Heat sink profile made of anodised, extruded aluminium;

Additional information

Size

752/952/1352/1502/1702(mm)

Power

7.5 W – 17 W

Operating voltage

24 V DC

Luminaire type

Cooling unit lighting

Light efficientcy

Up to 130 lm/W

Colour Consisency

3 SDCM

Lifetime

L80 B10 50,000 h @ 10℃

Operating temperature

-30℃ to + 35℃

Material

PC / Aluminium

Warranty

5 Years

Waterproof

IP65

Related Parameter Files

Related Parameter Files

Parameter information related to the current product
Download

Product Details

Product name Length (mm) Lumen( lm)    transparent cover Power     (W) Colour renderig Index Colour temperature (K)
Vertical LBS-VR L750 752 915 7.5 90 3000K
Vertical LBS-VR L750 752 938 7.5 90 4000K
Vertical LBS-VR L750 752 970 7.5 90 6000K
Vertical LBS-VR L750 752 735 7.5 80 Fresh meat
Vertical LBS-VR L950 952 1151 9.5 90 3000K
Vertical LBS-VR L950 952 1186 9.5 90 4000K
Vertical LBS-VR L950 952 1237 9.5 90 6000K
Vertical LBS-VR L950 952 929 9.5 80 Fresh meat
Vertical LBS-VR L1350 1352 1618 13.5 90 3000K
Vertical LBS-VR L1350 1352 1685 13.5 90 4000K
Vertical LBS-VR L1350 1352 1738 13.5 90 6000K
Vertical LBS-VR L1350 1352 1317 13.5 80 Fresh meat
Vertical LBS-VR L1500 1502 1783 15 90 3000K
Vertical LBS-VR L1500 1502 1898 15 90 4000K
Vertical LBS-VR L1500 1502 1920 15 90 6000K
Vertical LBS-VR L1500 1502 1460 15 90 Fresh meat
Vertical LBS-VR L1700 1702 2025 17 90 3000K
Vertical LBS-VR L1700 1702 2128 17 90 4000K
Vertical LBS-VR L1700 1702 2178 17 90 6000K
Vertical LBS-VR L1700 1702 1690 17 90 Fresh meat

Why Choose Us

For more than 10 years, Laidishine has been providing a wide range of professional lighting services and become an innovator LED cool light field to the global market.

Customers also want to enjoy their shopping time. During this process, products must be seen clearly in the correct light. A good lighting solution attracts customers’ attention and makes the products colorful and attractive.

To satisfy retailers, Laidishine researches and designs LED lights with unique beams. This optical lens technique will let your products give a breathtaking performance. Meanwhile, the right light solution will help to leave a strong brand image in the mind of customers.

It is well-known that good lighting solutions in supermarkets can enhance customers’ shopping experience. Various approaches of colour therapy show how much our awareness is affected by colour. Laidishine LED products Increased product visibility, merchandizes looks more appealing and the packaging stands out.

Conventional fluorescent lighting will generate a lot of heat, which will add extra work to the cooling cistern, in turn, low temperatures reduce the effectiveness of fluorescent lighting. Since refrigeration equipment typically accounts for about half of supermarket’s total electricity consumption, 25% of which is consumed by cabinet lighting. LaidishineLED, with its cool running and high energy sinciency, conquers these weaknesses.
