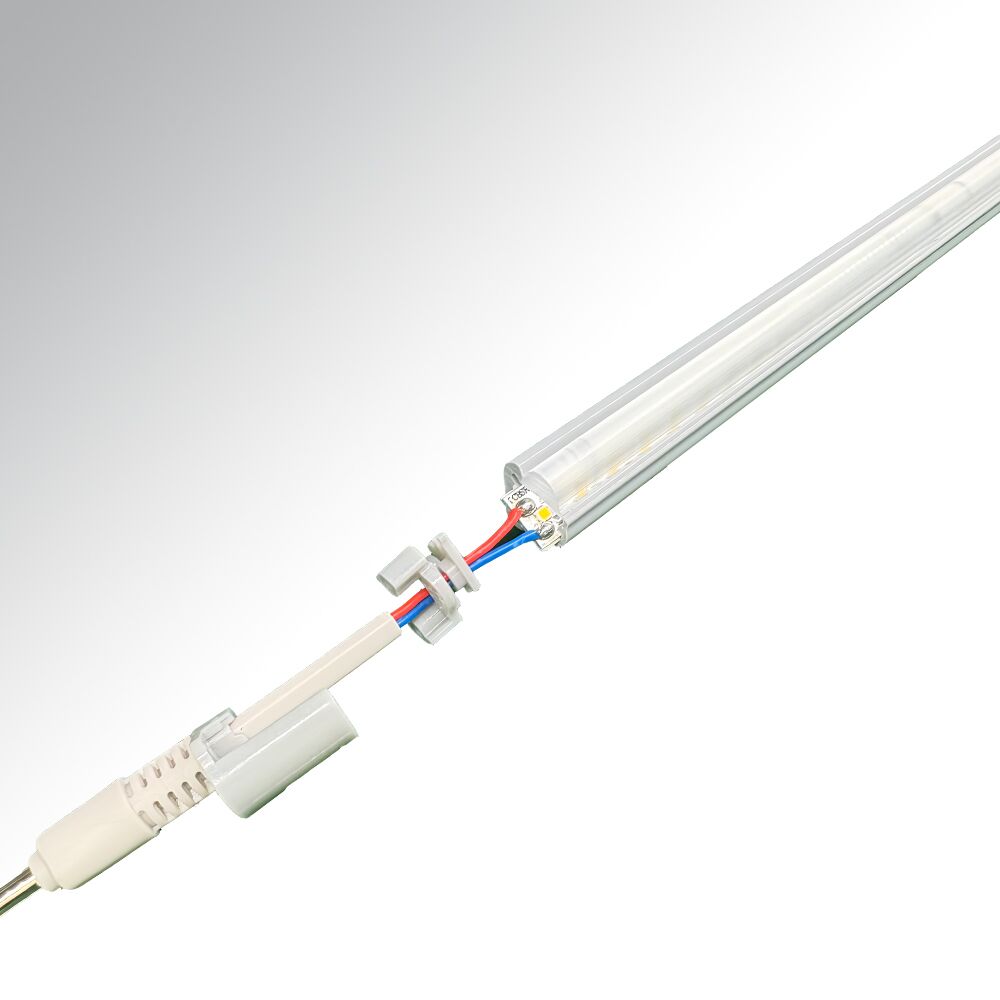

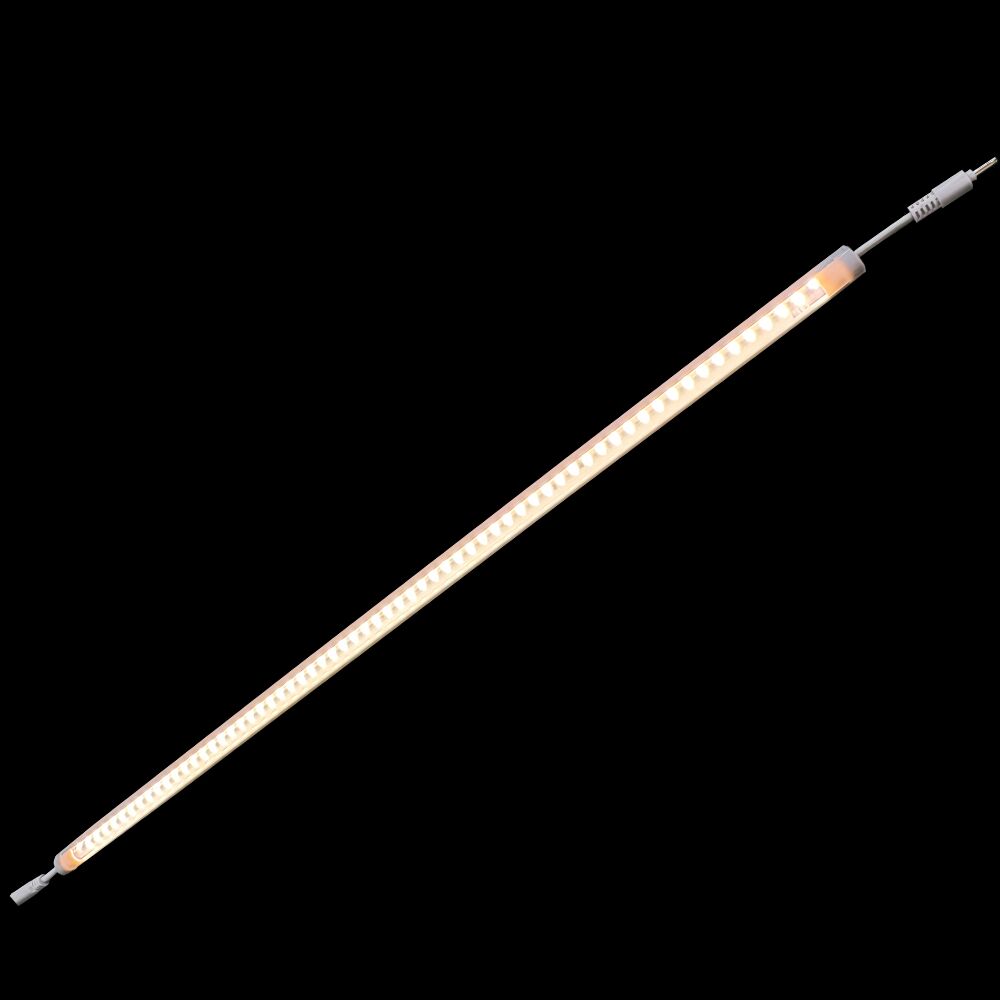

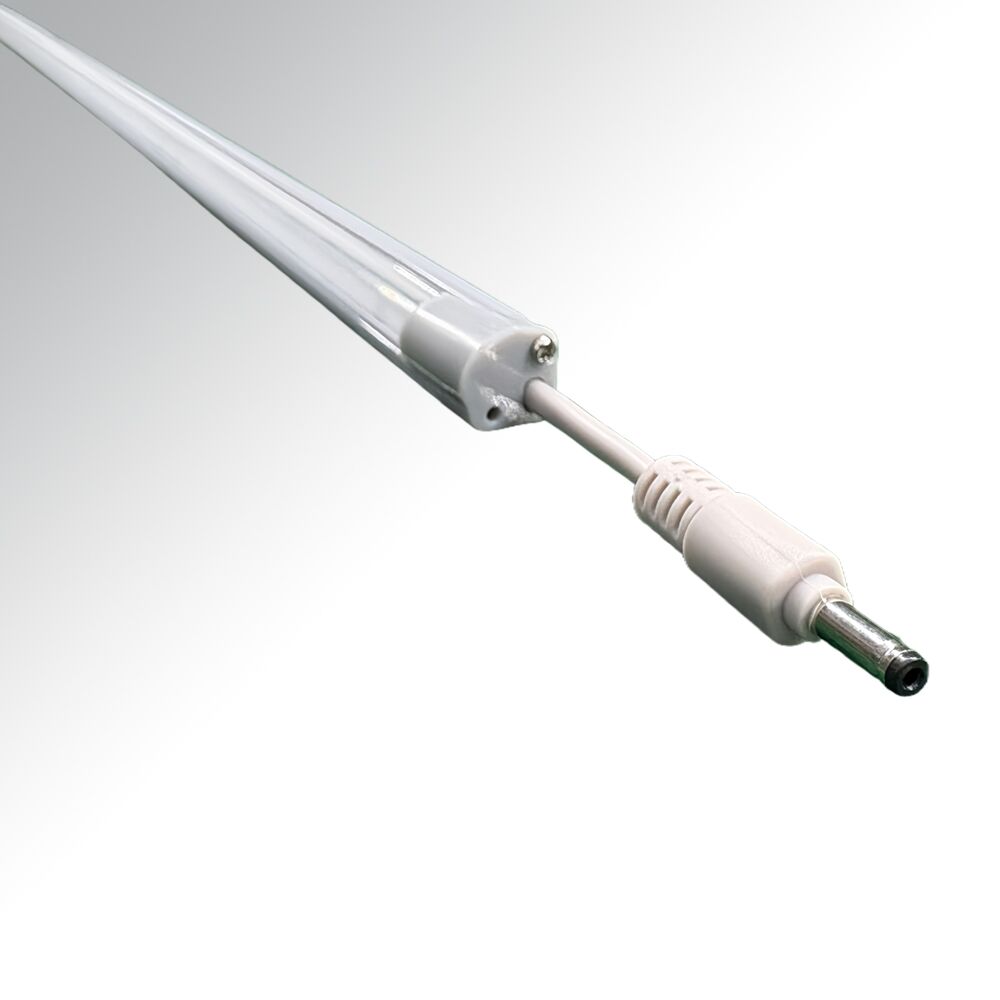

Shelf light for fresh food display case SRL-H

  • Transparent/milky cover optional.
  • Cost-effective and safe to use, with extra-low voltage; Suitable for low-temperature refrigerated cabinets -30 to +35°(IP 65);
  • Installation: via magnet or screw clip;
  • Brilliant light with CRI 90;
  • Long lifespan of over 50,000 hours.
  • Multiple sizes, wattages, and color temperatures are available.

Additional information

Power

5W-13.1W

Operating voltage

24 V DC

Luminaire type

Cooling unit lighting

Light efficientcy

Up to 130 lm/W

Colour Consisency

3 SDCM

Lifetime

L80 B10 50,000 h @ 10℃

Operating temperature

-30℃ to + 35℃

Material

PC

Warranty

5 Years

Related Parameter Files

Related Parameter Files

Parameter information related to the current product
Download
The SRL‑H series LED light bars are high‑performance lighting solutions developed by Laidishine specifically for commercial refrigerated display cases and freezers. Featuring high‑quality PC material and advanced optical lens technology, these light bars maintain excellent luminous efficacy and stability even in low‑temperature environments, delivering bright, uniform, and color‑accurate illumination for fresh and frozen foods.

Core Features

🔋 Long Lifespan & Low Maintenance Cost

With a service life of over 50,000 hours (L80 B10 @ 10°C), the SRL‑H series drastically reduces replacement frequency and maintenance costs. For supermarket cold chain equipment that runs 24/7, this translates into years of virtually maintenance‑free operation.

💰 Energy Efficient

Delivering a luminous efficacy of up to 130 lm/W, these light tubes consume far less power than traditional lighting solutions at the same brightness level. Refrigeration equipment typically accounts for 50% of a supermarket’s total electricity consumption, with about 25% of that coming from display case lighting. Thanks to its low heat generation and high efficiency, the SRL‑H significantly reduces the additional load on cooling systems, achieving dual energy savings.

🛡️ High Protection Rating (IP65)

The IP65‑rated waterproof and dustproof design withstands condensation, frost, and cleaning sprays, ensuring long‑term reliable operation in humid refrigerated environments.

🔧 Flexible Installation

Supports both magnetic mounting and screw‑clamp mounting, allowing quick installation or replacement without complex tools, and adapting to various display case configurations.

Product Application

Drink Shelf Lighting At Freshippo
Vegetable Lighting At Supermarket Supplier
Freshippo Multi Deck Showcase Light
Retrofit Lighting For Existing Refrigerators At Supermarket
Shelf Light For Multi Deck Showcase
Island Cabinet Showcase LED Lighting Solution
Sliding Door Cabinets Display Lighting
LED Lighting Solutions For Supermarket Freezer Display Showcase

Why Choose Us

For more than 10 years, Laidishine has been providing a wide range of professional lighting services and become an innovator LED cool light field to the global market.

Customers also want to enjoy their shopping time. During this process, products must be seen clearly in the correct light. A good lighting solution attracts customers’ attention and makes the products colorful and attractive.

To satisfy retailers, Laidishine researches and designs LED lights with unique beams. This optical lens technique will let your products give a breathtaking performance. Meanwhile, the right light solution will help to leave a strong brand image in the mind of customers.

It is well-known that good lighting solutions in supermarkets can enhance customers’ shopping experience. Various approaches of colour therapy show how much our awareness is affected by colour. Laidishine LED products Increased product visibility, merchandizes looks more appealing and the packaging stands out.

Conventional fluorescent lighting will generate a lot of heat, which will add extra work to the cooling cistern, in turn, low temperatures reduce the effectiveness of fluorescent lighting. Since refrigeration equipment typically accounts for about half of supermarket’s total electricity consumption, 25% of which is consumed by cabinet lighting. LaidishineLED, with its cool running and high energy sinciency, conquers these weaknesses.
