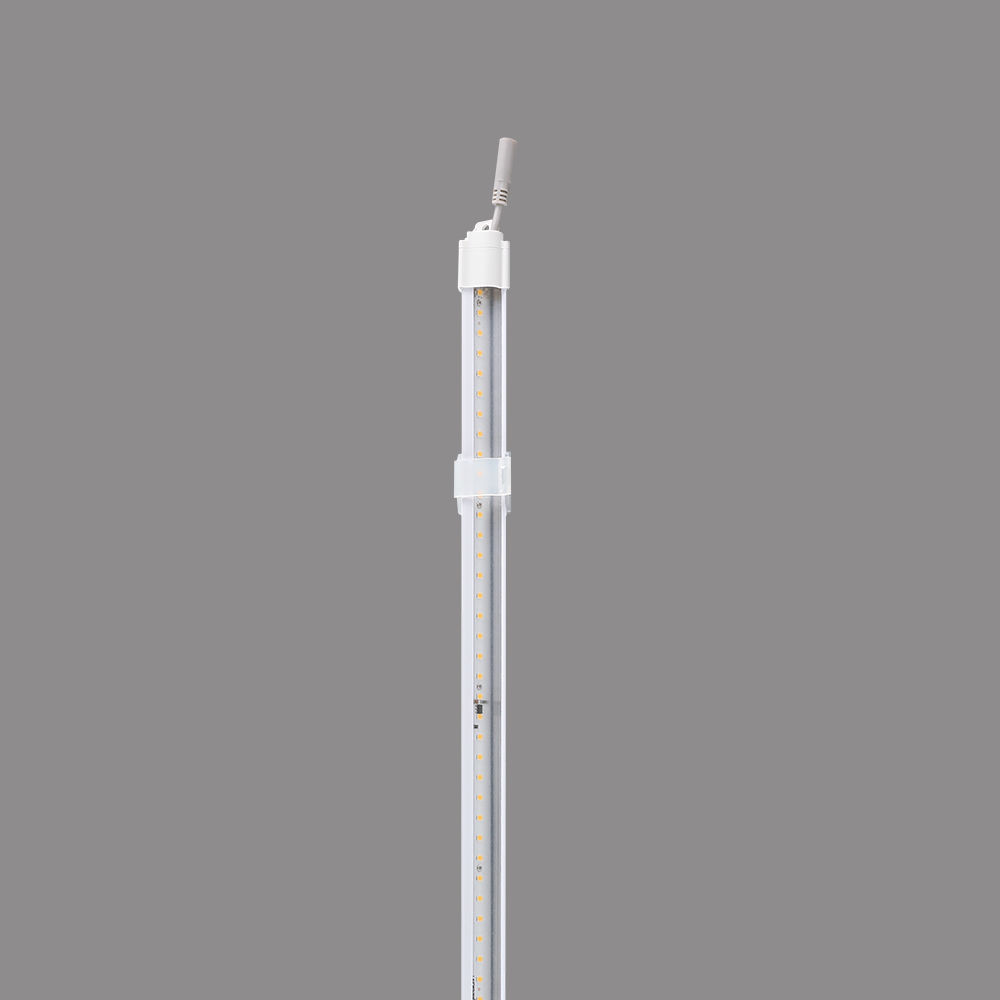

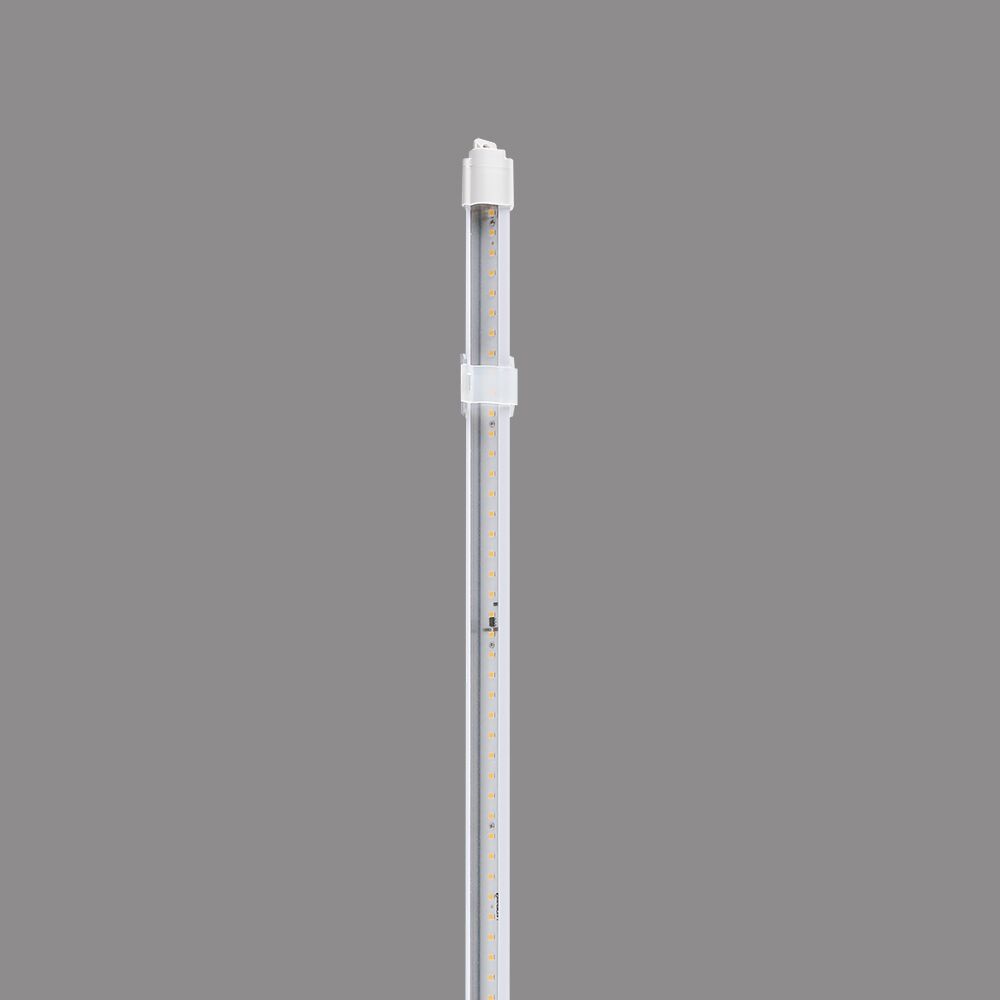

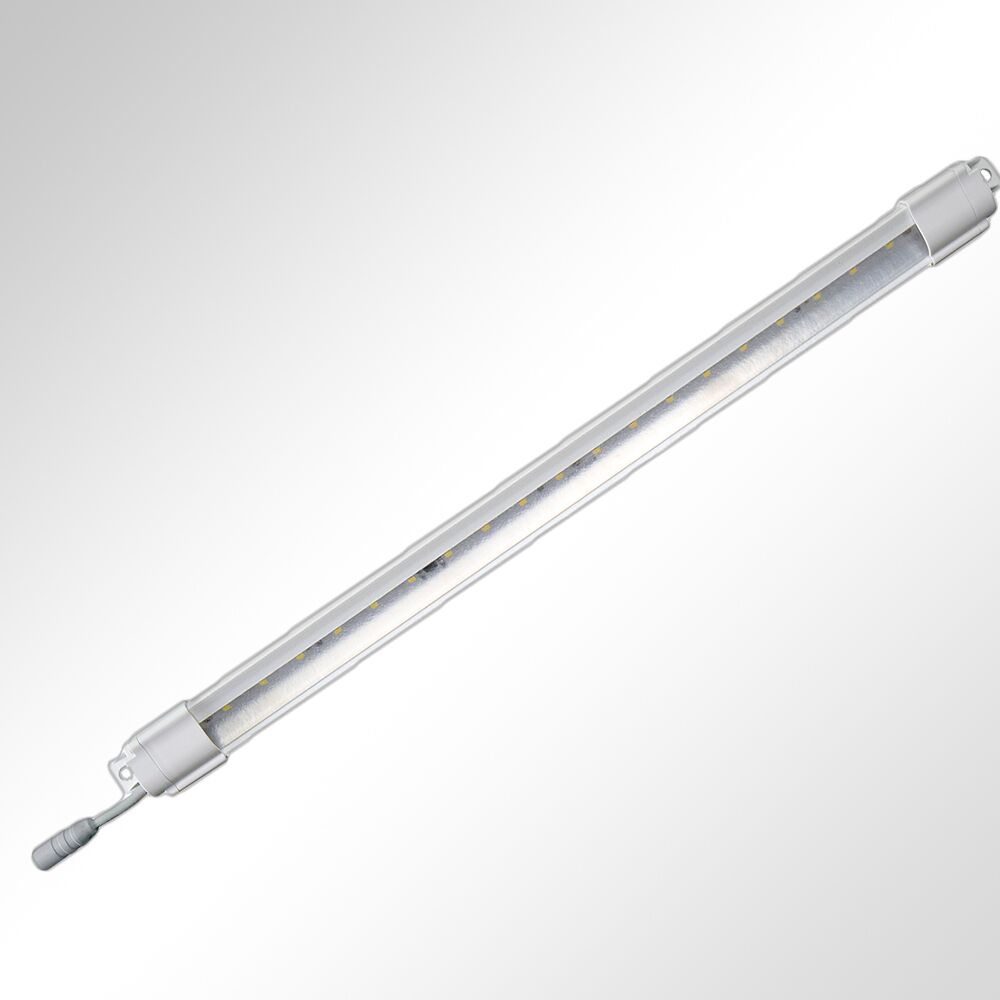

Vertical Door Lighting Vertical Freezer Door Light LBF-VL

● Cost-effective and safe-use,with extra-low voltage;
● Suitable for low temperature refrigerated cabinets -25 to +25° (IP 65);
● Installation: screw clip;
● Brilliant light with CRI 90;
● Excellent product illumination with innovative optics;
● Heat sink profile made of anodised, extruded aluminium;

Additional information

Size

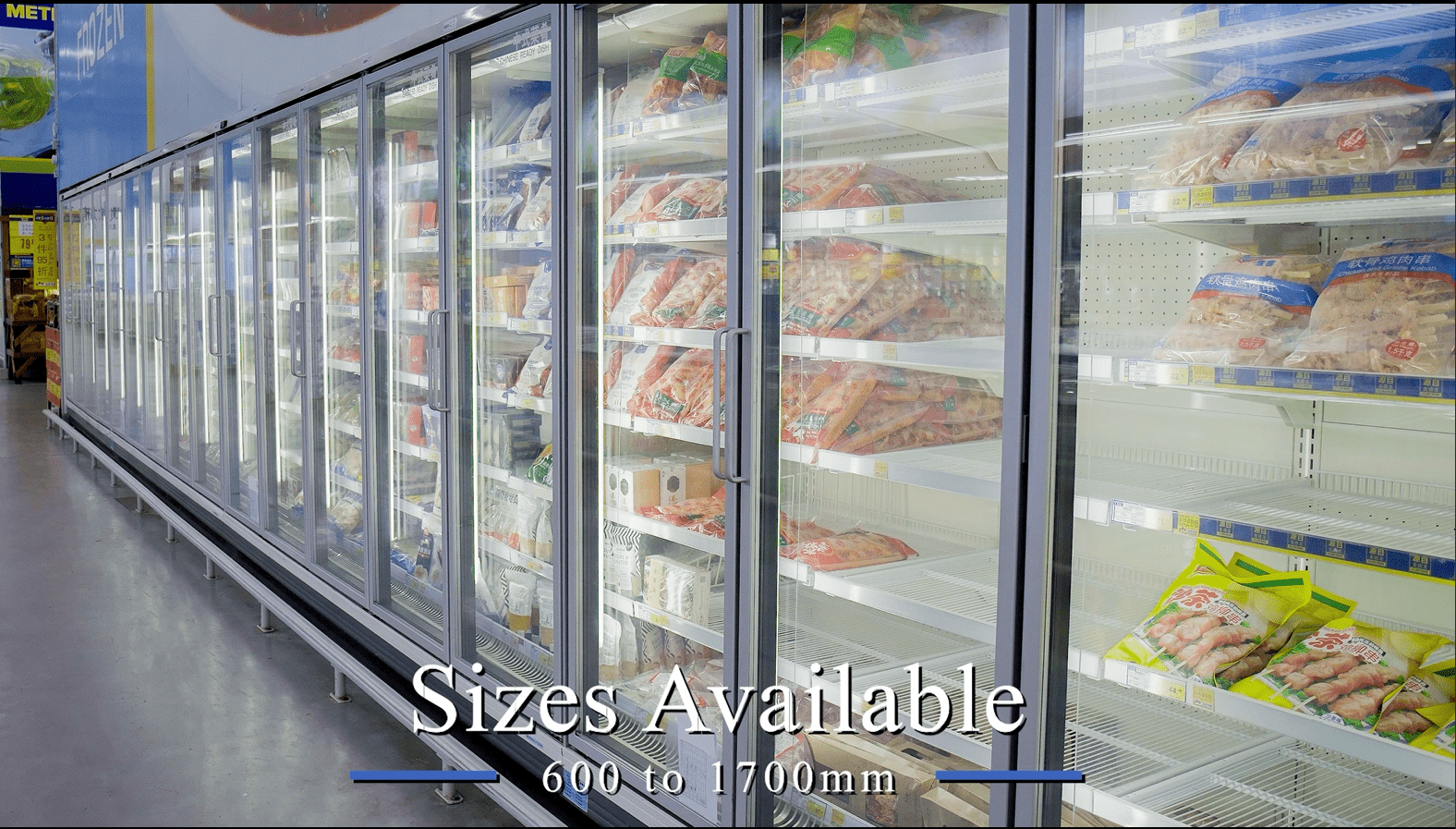

750/950/1350/1500/1700(mm)

Power

7.5 W – 18.3 W

Operating voltage

24 V DC

Luminaire type

Cooling unit lighting

Light efficientcy

Up to 125 lm/W

Colour Consisency

5 SDCM (SDCM<3 option)

Lifetime

L80 B10 50,000 h @ 10℃

Operating temperature

-25℃ to + 25℃

Material

PC / Aluminium

Warranty

5 Years

Waterproof

IP65

MOQ

128PCS

Related Parameter Files

Related Parameter Files

Parameter information related to the current product
Download

Product Details

Product name Length (mm) Lumen( lm)    transparent cover Power     (W) Colour renderig Index Colour temperature (K)
Vertical left/right LBF-VL L750 750 840 7.5 80 3000K
Vertical left/right LBF-VL L750 750 900 7.5 80 4000K
Vertical left/right LBF-VL L750 750 930 7.5 80 6500K
Vertical left/right LBF-VL L750 750 630 7.5 80 Fresh meat
Vertical left/right LBF-VL L950 950 1180 10.3 80 3000K
Vertical left/right LBF-VL L950 950 1260 10.3 80 4000K
Vertical left/right LBF-VL L950 950 1280 10.3 80 6500K
Vertical left/right LBF-VL L950 950 880 10.3 80 Fresh meat
Vertical left/right LBF-VL L1350 1350 1710 14.9 80 3000K
Vertical left/right LBF-VL L1350 1350 1830 14.9 80 4000K
Vertical left/right LBF-VL L1350 1350 1870 14.9 80 6500K
Vertical left/right LBF-VL L1350 1350 1280 14.9 80 Fresh meat
Vertical left/right LBF-VL L1500 1500 1835 16 80 3000K
Vertical left/right LBF-VL L1500 1500 1970 16 80 4000K
Vertical left/right LBF-VL L1500 1500 2000 16 80 6500K
Vertical left/right LBF-VL L1500 1500 1370 16 80 Fresh meat
Vertical left/right LBF-VL L1700 1700 2100 18.3 80 3000K
Vertical left/right LBF-VL L1700 1700 2250 18.3 80 4000K
Vertical left/right LBF-VL L1700 1700 2290 18.3 80 6500K
Vertical left/right LBF-VL L1700 1700 1570 18.3 80 Fresh meat

Why Choose Us

For more than 10 years, Laidishine has been providing a wide range of professional lighting services and become an innovator LED cool light field to the global market.

Customers also want to enjoy their shopping time. During this process, products must be seen clearly in the correct light. A good lighting solution attracts customers’ attention and makes the products colorful and attractive.

To satisfy retailers, Laidishine researches and designs LED lights with unique beams. This optical lens technique will let your products give a breathtaking performance. Meanwhile, the right light solution will help to leave a strong brand image in the mind of customers.

It is well-known that good lighting solutions in supermarkets can enhance customers’ shopping experience. Various approaches of colour therapy show how much our awareness is affected by colour. Laidishine LED products Increased product visibility, merchandizes looks more appealing and the packaging stands out.

Conventional fluorescent lighting will generate a lot of heat, which will add extra work to the cooling cistern, in turn, low temperatures reduce the effectiveness of fluorescent lighting. Since refrigeration equipment typically accounts for about half of supermarket’s total electricity consumption, 25% of which is consumed by cabinet lighting. LaidishineLED, with its cool running and high energy sinciency, conquers these weaknesses.
