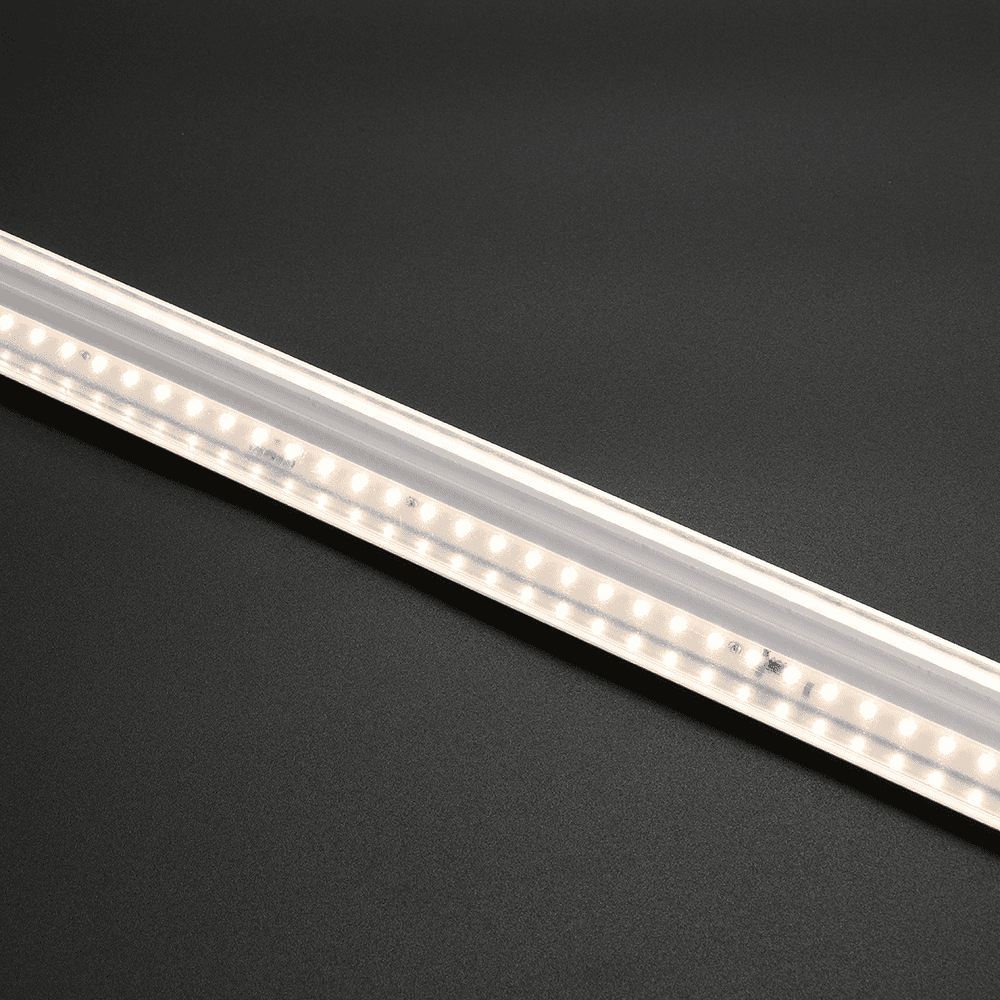

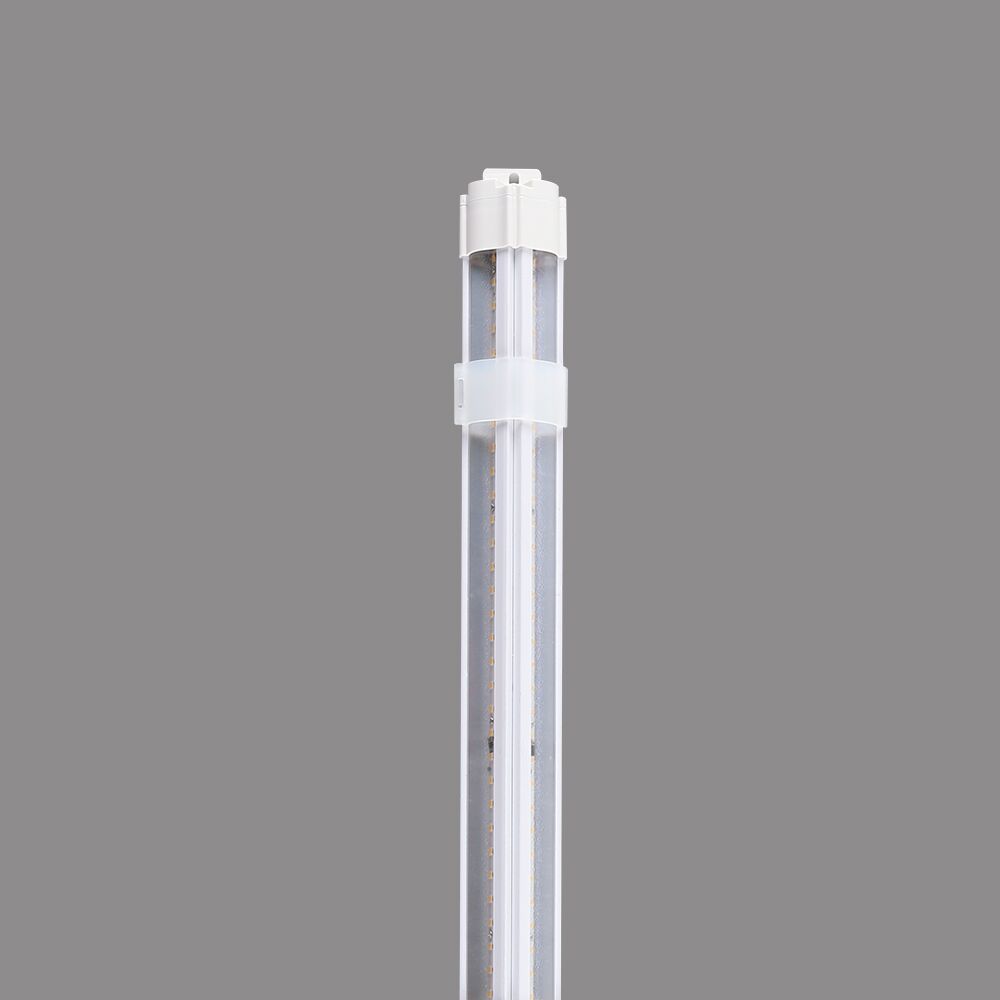

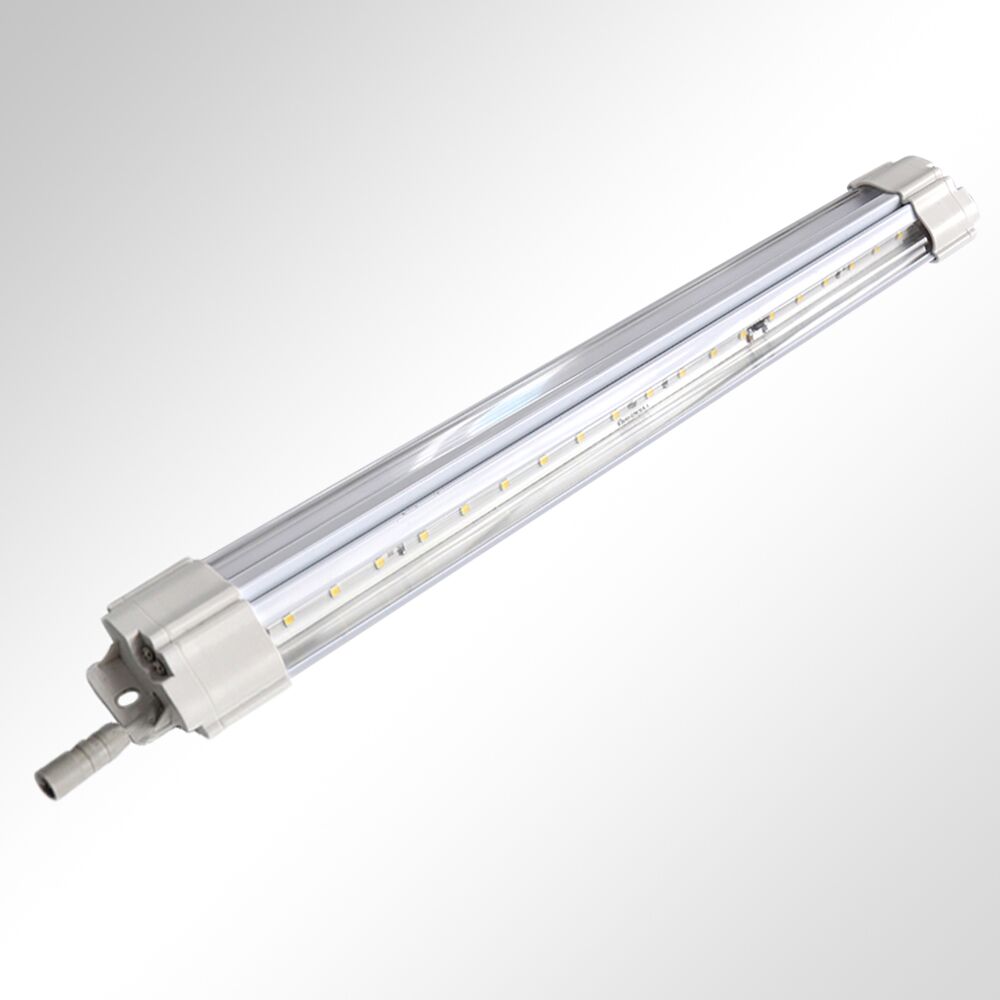

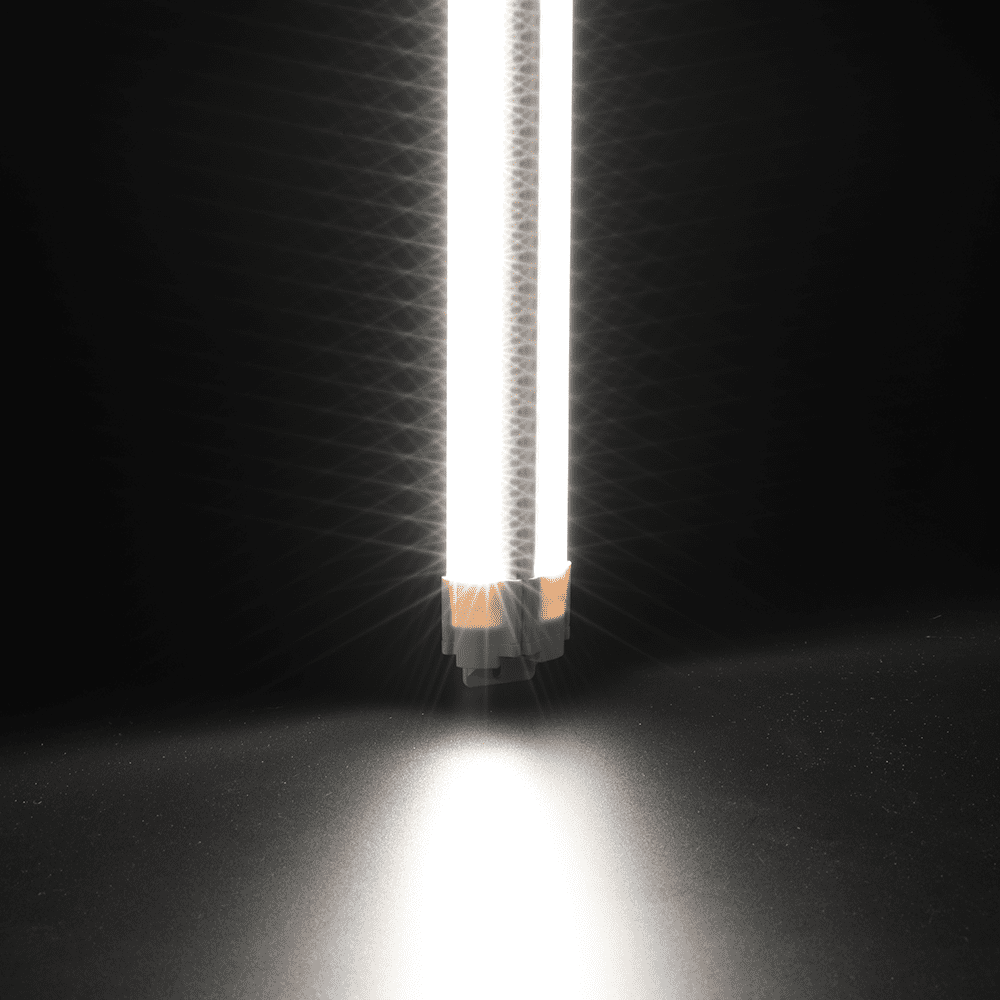

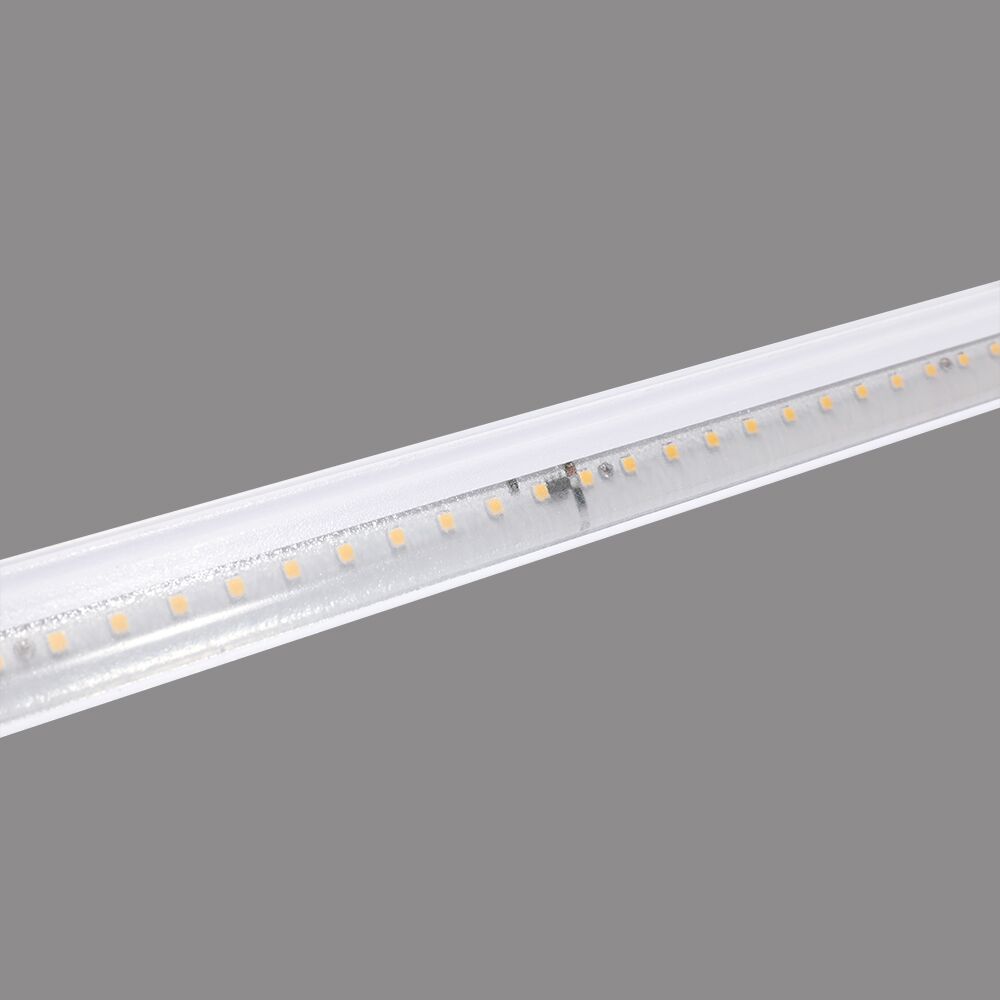

Vertical Door Lighting Vertical Freezer Door Light LBF-VC

● Cost-effective and safe use,with extra-low voltage;
● Suitable for low temperature refrigerated cabinets -25 to +25° (IP 65);

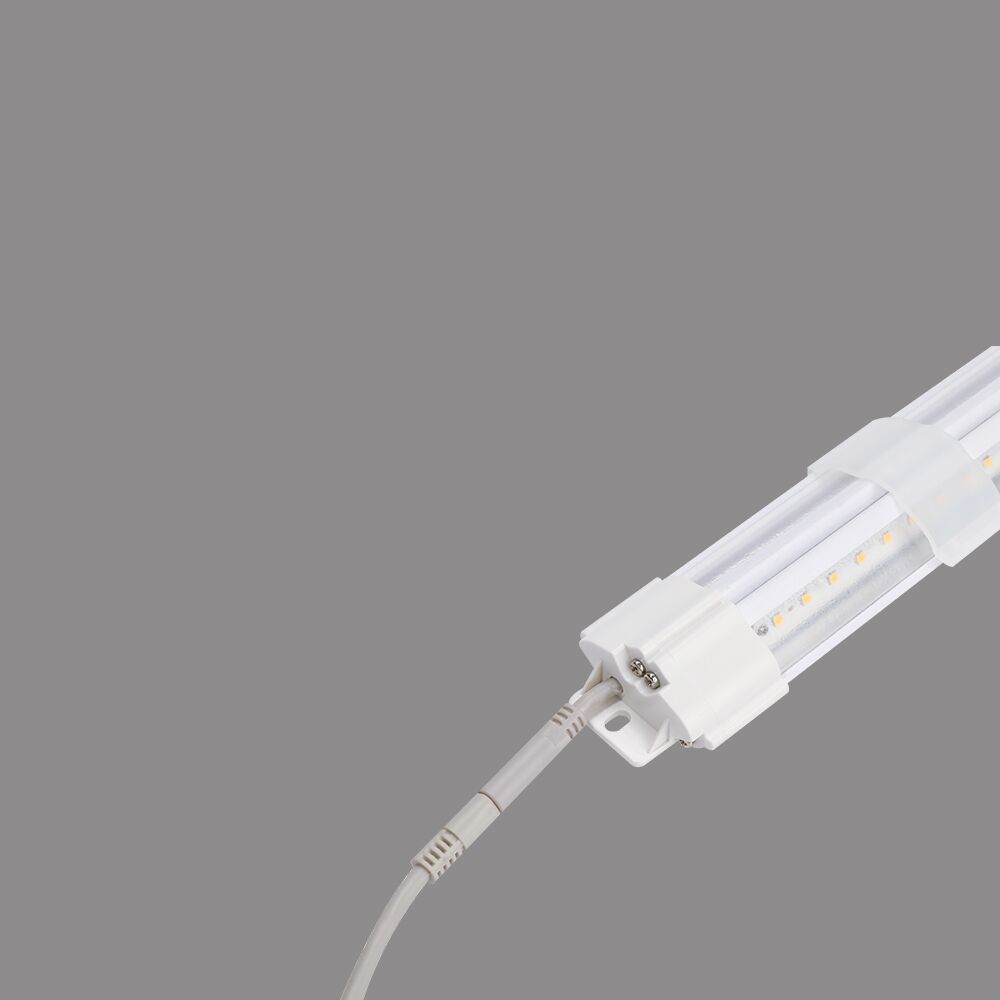

● Installation: screw clip;
● Brilliant light with CRI 90;
● Excellent product illumination with innovative optics;
● Heat sink profile made of anodised, extruded aluminium;

Additional information




15 W – 36.5 W

Operating voltage

24 V DC

Luminaire type

Cooling unit lighting

Light efficientcy

Up to 125 lm/W

Colour Consisency

5 SDCM (SDCM<3 option)


L80 B10 50,000 h @ 10℃

Operating temperature

-25℃ to + 25℃


PC / Aluminium


5 Years





Related Parameter Files

Related Parameter Files

Parameter information related to the current product

Product Details

Product nameLength (mm)Lumen( lm)    transparent coverPower (W)Colour renderig IndexColour temperature (K)
Vertical centre LBF-VC L750750168015803000K
Vertical centre LBF-VC L750750180015804000K
Vertical centre LBF-VC L750750186015806500K
Vertical centre LBF-VC L75075012601580Fresh meat
Vertical centre LBF-VC L950950236020.5803000K
Vertical centre LBF-VC L950950252020.5804000K
Vertical centre LBF-VC L950950256020.5806500K
Vertical centre LBF-VC L950950176020.580Fresh meat
Vertical centre LBF-VC L13501350342030803000K
Vertical centre LBF-VC L13501350366030804000K
Vertical centre LBF-VC L13501350374030806500K
Vertical centre LBF-VC L1350135025603080Fresh meat
Vertical centre LBF-VC L15001500367032803000K
Vertical centre LBF-VC L15001500394032804000K
Vertical centre LBF-VC L15001500400032806500K
Vertical centre LBF-VC L1500150027403280Fresh meat
Vertical centre LBF-VC L17001700420036.5803000K
Vertical centre LBF-VC L17001700450036.5804000K
Vertical centre LBF-VC L17001700458036.5806500K
Vertical centre LBF-VC L17001700314036.580Fresh meat

Why Choose Us

For more than 10 years, Laidishine has been providing a wide range of professional lighting services and become an innovator LED cool light field to the global market.

Customers also want to enjoy their shopping time. During this process, products must be seen clearly in the correct light. A good lighting solution attracts customers’ attention and makes the products colorful and attractive.

To satisfy retailers, Laidishine researches and designs LED lights with unique beams. This optical lens technique will let your products give a breathtaking performance. Meanwhile, the right light solution will help to leave a strong brand image in the mind of customers.

It is well-known that good lighting solutions in supermarkets can enhance customers’ shopping experience. Various approaches of colour therapy show how much our awareness is affected by colour. Laidishine LED products Increased product visibility, merchandizes looks more appealing and the packaging stands out.

Conventional fluorescent lighting will generate a lot of heat, which will add extra work to the cooling cistern, in turn, low temperatures reduce the effectiveness of fluorescent lighting. Since refrigeration equipment typically accounts for about half of supermarket’s total electricity consumption, 25% of which is consumed by cabinet lighting. LaidishineLED, with its cool running and high energy sinciency, conquers these weaknesses.
