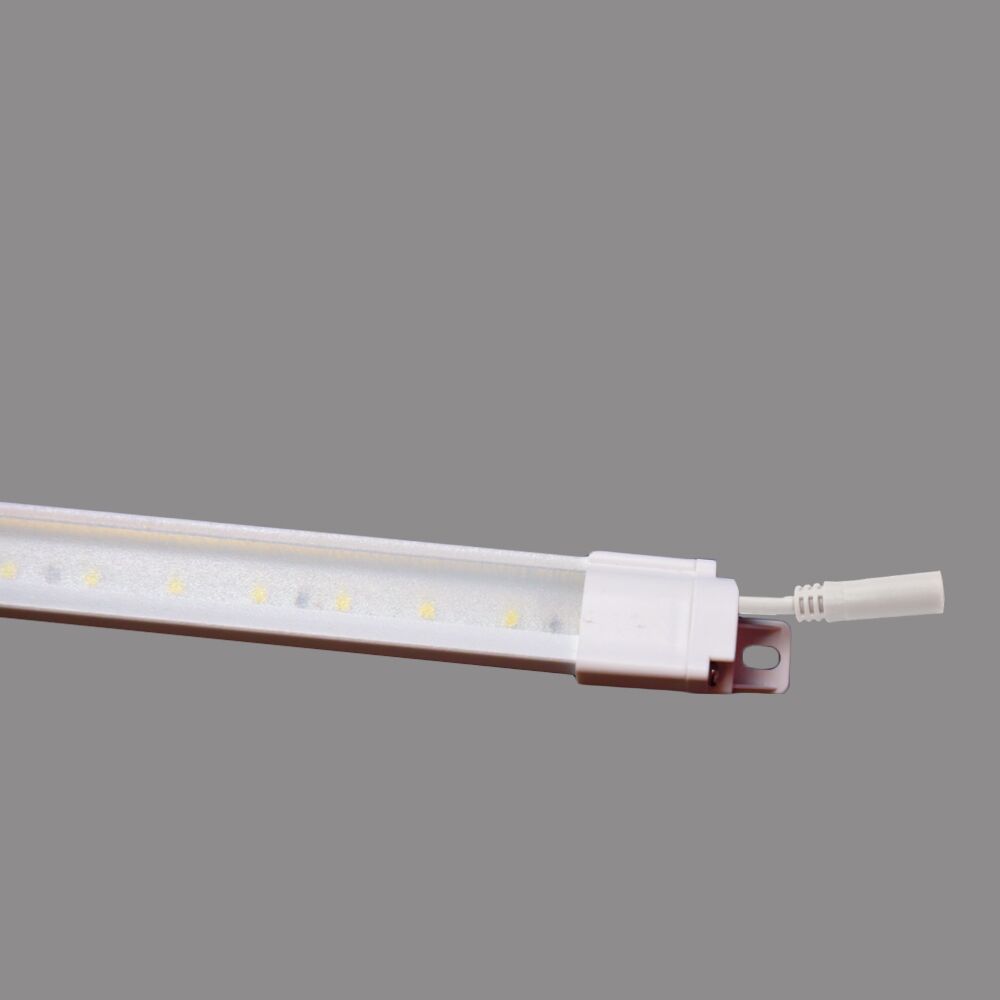

Horizontal Lighting Shelf light LBF-H Series

● Cost-effective and safe-use,with extra-low voltage;
● Suitable for low temperature refrigerated cabinets -30 to +35℃ (IP 65);
● Installation: via magnet or screw clip;
● Brilliant light with CRI 90;
● Excellent product illumination with innovative optics;
● Heat sink profile made of anodised, extruded aluminium;

Additional information

Size

600/900/1190/1500(mm)

Power

5.8W – 16 W

Operating voltage

24 V DC

Luminaire type

Cooling unit lighting

Light efficientcy

Up to 107 lm/W

Colour Consisency

5 SDCM (SDCM<3 option)

Lifetime

L80 B10 50,000 h @ 10℃

Operating temperature

-30℃ to + 35℃

Material

PC / Aluminium

Warranty

5 Years

Waterproof

IP65

MOQ

128PCS

Related Parameter Files

Related Parameter Files

Parameter information related to the current product
Download

Product Details

Product nameLength (mm)  Lumen  ( lm)     milk-white coverPower   (W)Colour renderig IndexColour temperature (K)
Horizontal single side LBF-H L6006005705.8803000K
Horizontal single side LBF-H L6006005955.8804000K
Horizontal single side LBF-H L6006006155.8806500K
Horizontal single side LBF-H L6006004455.880Fresh meat
Horizontal single side LBF-H L9009009109.2803000K
Horizontal single side LBF-H L9009009669.2804000K
Horizontal single side LBF-H L9009009809.2806500K
Horizontal single side LBF-H L9009007159.280Fresh meat
Horizontal  single side LBF-H L12001190127012.7803000K
Horizontal  single side LBF-H L12001190133012.7804000K
Horizontal  single side LBF-H L12001190136012.7806500K
Horizontal  single side LBF-H L1200119099012.780Fresh meat
Horizontal single side LBF-H L15001500160016803000K
Horizontal single side LBF-H L15001500168016804000K
Horizontal single side LBF-H L15001500171516806500K
Horizontal single side LBF-H L1500150012481680Fresh meat

Why Choose Us

For more than 10 years, Laidishine has been providing a wide range of professional lighting services and become an innovator LED cool light field to the global market.

Customers also want to enjoy their shopping time. During this process, products must be seen clearly in the correct light. A good lighting solution attracts customers’ attention and makes the products colorful and attractive.

To satisfy retailers, Laidishine researches and designs LED lights with unique beams. This optical lens technique will let your products give a breathtaking performance. Meanwhile, the right light solution will help to leave a strong brand image in the mind of customers.

It is well-known that good lighting solutions in supermarkets can enhance customers’ shopping experience. Various approaches of colour therapy show how much our awareness is affected by colour. Laidishine LED products Increased product visibility, merchandizes looks more appealing and the packaging stands out.

Conventional fluorescent lighting will generate a lot of heat, which will add extra work to the cooling cistern, in turn, low temperatures reduce the effectiveness of fluorescent lighting. Since refrigeration equipment typically accounts for about half of supermarket’s total electricity consumption, 25% of which is consumed by cabinet lighting. LaidishineLED, with its cool running and high energy sinciency, conquers these weaknesses.
