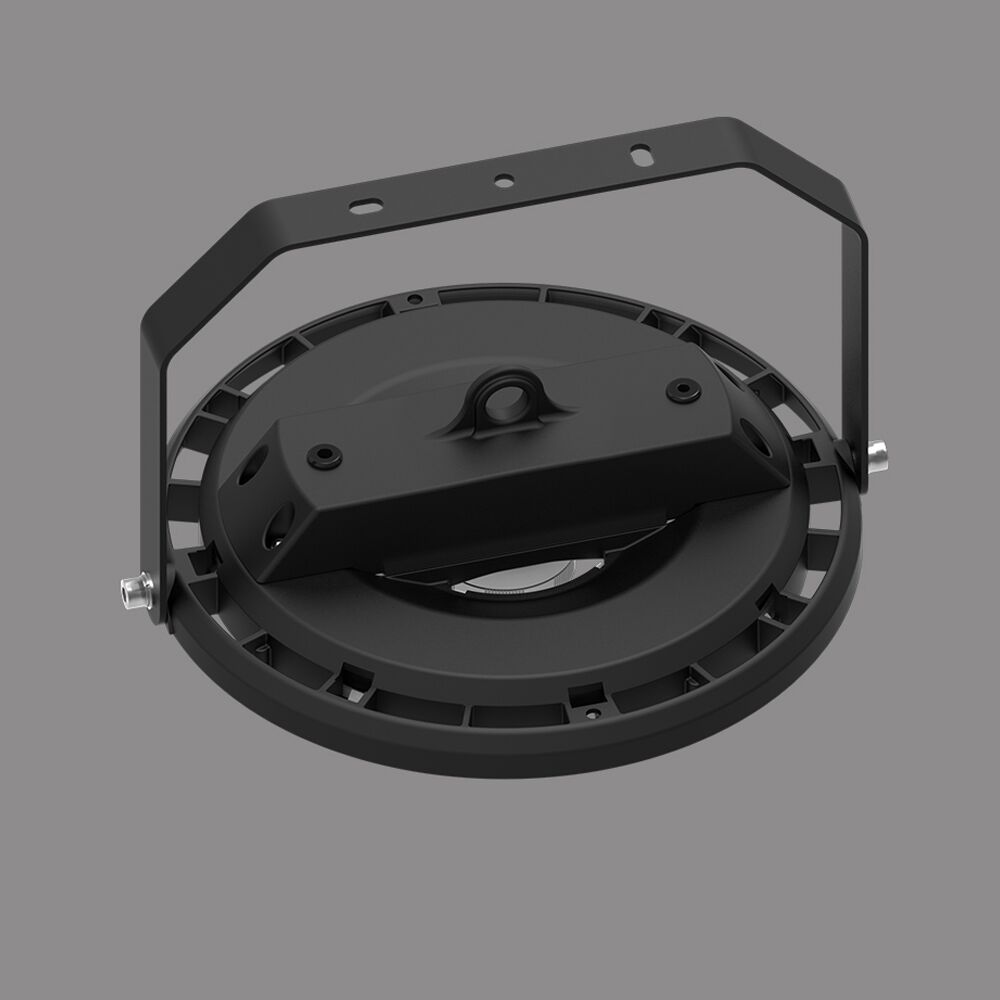

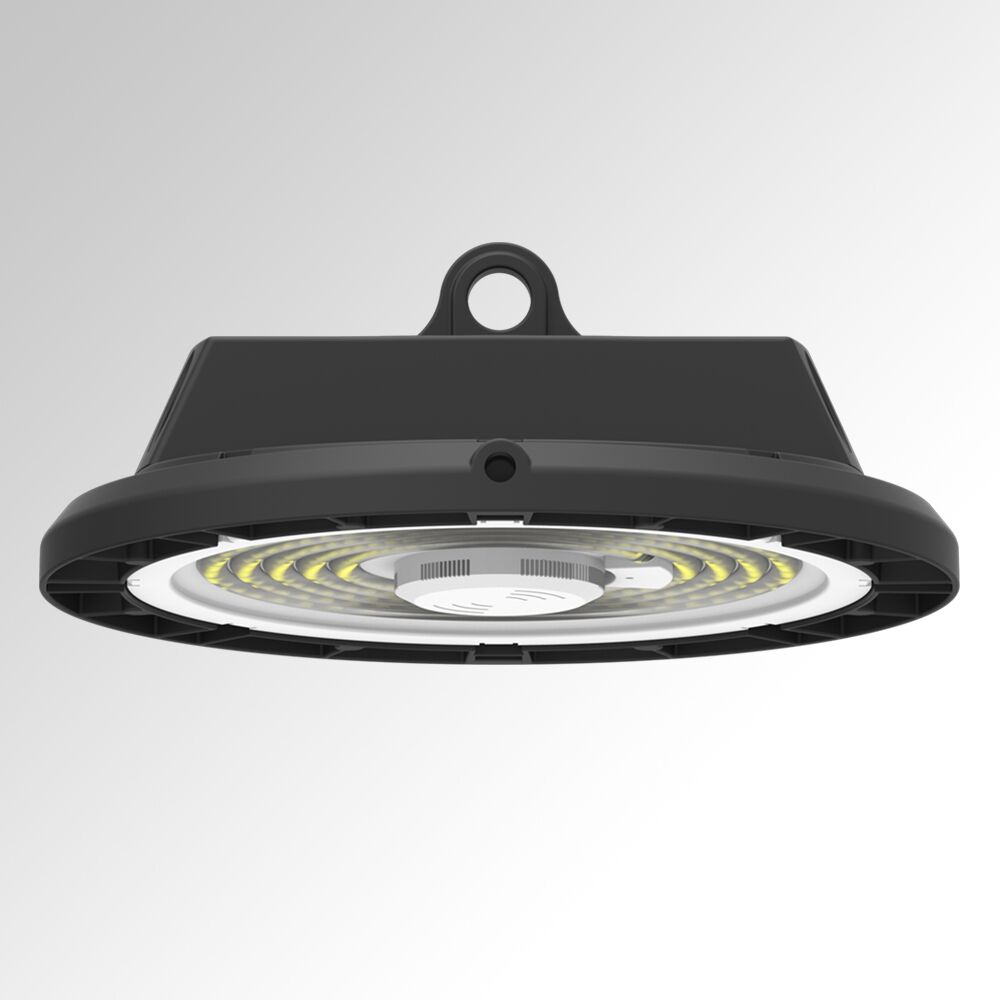

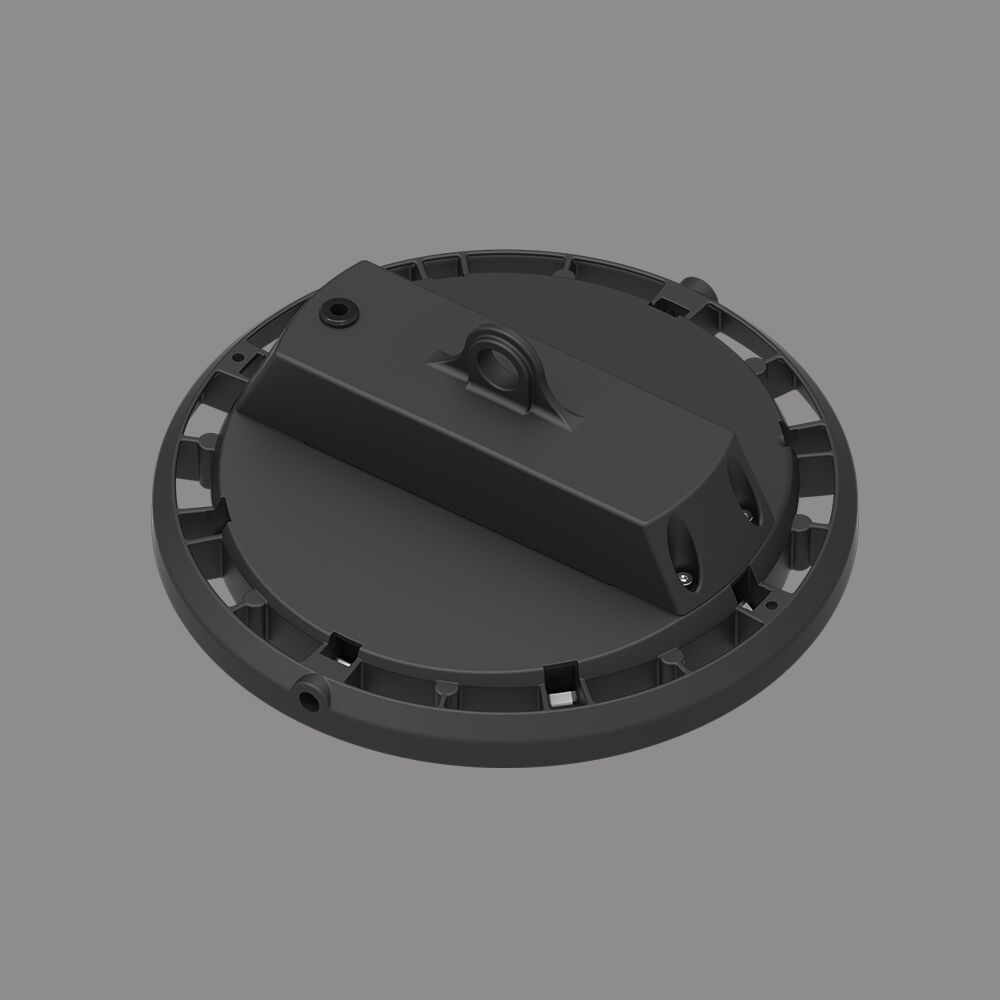

High Bay IP65 UFO EST Series

● 3 Options for luminous efficiency:
140LM/W(Ra80), 175LM/W (Ra80), 190LM/W (Ra70);
● SCP/OVP/OTP protection driver;
● DIY follows up on your needs: LED chips, Heat Sink and Driver;
● 3 in 1 dimming (PWM, 1-10V, Resistor) or Microwave.

Additional information

Size

φ262/φ300/φ336(mm)

Power

60/100/150/200W

Light efficientcy

Up to 190lm/w

CRI

70/80

CCT

3000/4000/5000/5700K

Colour Consisency

SDCM<5

Beam Angle

60°/90°/120°

Input Voltage

AC100-277V 50/60Hz

Working Temp.

-30°C to 45°C

IK Grade

IK08

Installation Height

4-20M

IP Rating

IP65

Lifetime

L80 B10>60,000h @25°C

Warranty

5 Years

MOQ

100PCS

Related Parameter Files

Related Parameter Files

Parameter information related to the current product
Download

Product Details

Technical data
Power 100W 150W 200W
Lumen 14000lm 21000lm 28000lm
Efficacy 140lm/w 140lm/w 140lm/w
Beam angle 60°/90°/120° 60°/90°/120° 60°/90°/120°
CRI 70/80 SDCM < 5 70/80 SDCM < 5 70/80 SDCM < 5
Input Voltage 100-277V 50/60Hz 100-277V 50/60Hz 100-277V 50/60Hz
Temperature -30°C to 45°C -30°C to 45°C -30°C to 45°C
IK Grade IK 08 IK 08 IK 08
IP Rating IP65 IP65 IP65
Warranty 5 Years 5 Years 5 Years
Installation Height 4-20M 4-20M 4-20M

Why Choose Us

For more than 10 years, Laidishine has been providing a wide range of professional lighting services and become an innovator LED cool light field to the global market.

Customers also want to enjoy their shopping time. During this process, products must be seen clearly in the correct light. A good lighting solution attracts customers’ attention and makes the products colorful and attractive.

To satisfy retailers, Laidishine researches and designs LED lights with unique beams. This optical lens technique will let your products give a breathtaking performance. Meanwhile, the right light solution will help to leave a strong brand image in the mind of customers.

It is well-known that good lighting solutions in supermarkets can enhance customers’ shopping experience. Various approaches of colour therapy show how much our awareness is affected by colour. Laidishine LED products Increased product visibility, merchandizes looks more appealing and the packaging stands out.

Conventional fluorescent lighting will generate a lot of heat, which will add extra work to the cooling cistern, in turn, low temperatures reduce the effectiveness of fluorescent lighting. Since refrigeration equipment typically accounts for about half of supermarket’s total electricity consumption, 25% of which is consumed by cabinet lighting. LaidishineLED, with its cool running and high energy sinciency, conquers these weaknesses.
